Pipes are subjected to expected and unexpected forces—internal pressure, weight, wind—that affect their functioning. An analysis will help gain detailed insights to reduce stress, load, and pressure.

We translate these insights into a detailed report, ensuring that the piping systems operate within the prescribed code limits. The piping design team uses the analysis outputs to govern support positions and verify nozzle load compliance.

Key analysis performed by the plant engineering design team:

Static Stress Analysis – Pipes suffer continuous loads because of increased weight, fluid pressure, and temperature pressure.
Seismic Analysis – We consider environmental and other external factors while testing conditions of pipe racks, pumps, compressors, and pressure vessels.
Wind and Snow Load Analysis – Structural stability tests help piping systems withstand strong wind pushes and snow accumulation.
Specialised Analysis – Leakage, selection, and sizing checks of flanges, spring hangers, and rigid support as per ASME, API and vendor allowable specifications.

We focus on reducing design modifications through early analysis to minimise last-minute design changes. The analysis outputs contribute to better design decisions without disrupting the overall process.

During analysis, we prioritise critical pipelines and evaluate the design based on code compliance and load cases—operating temperatures, seismic loads, fluid density, equipment and nozzle loads. The stress modelling begins once this is documented and confirmed.

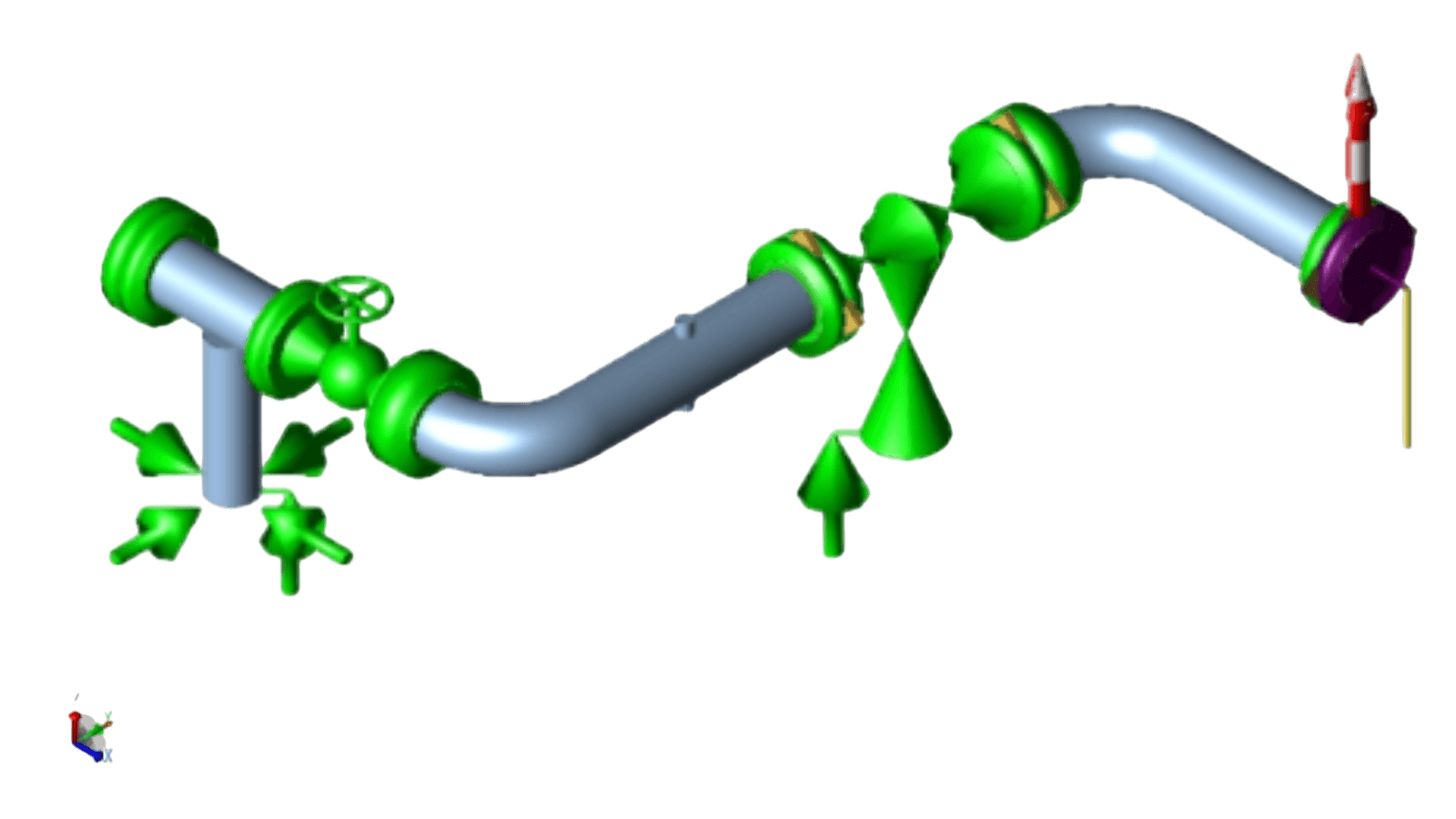

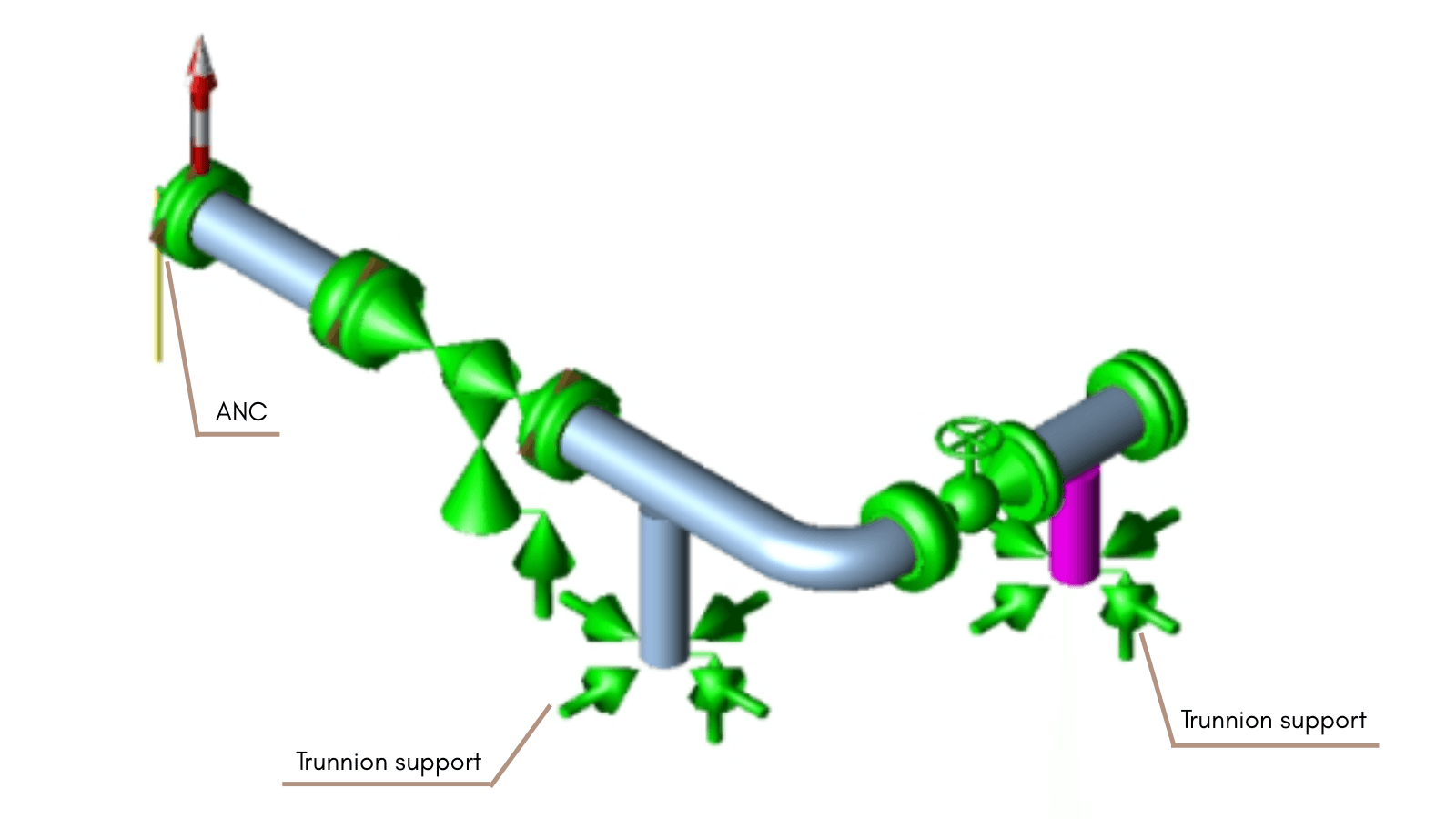

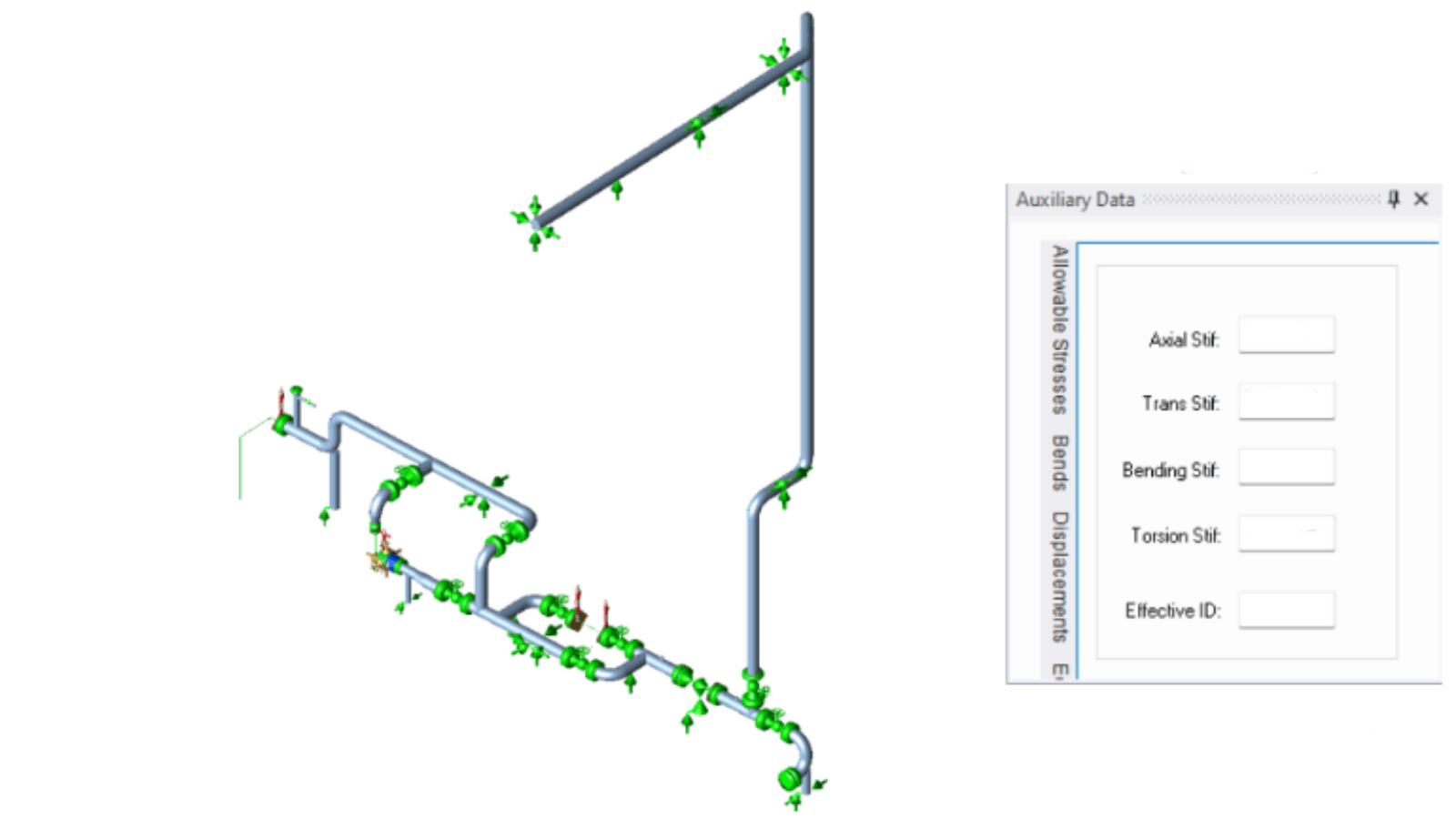

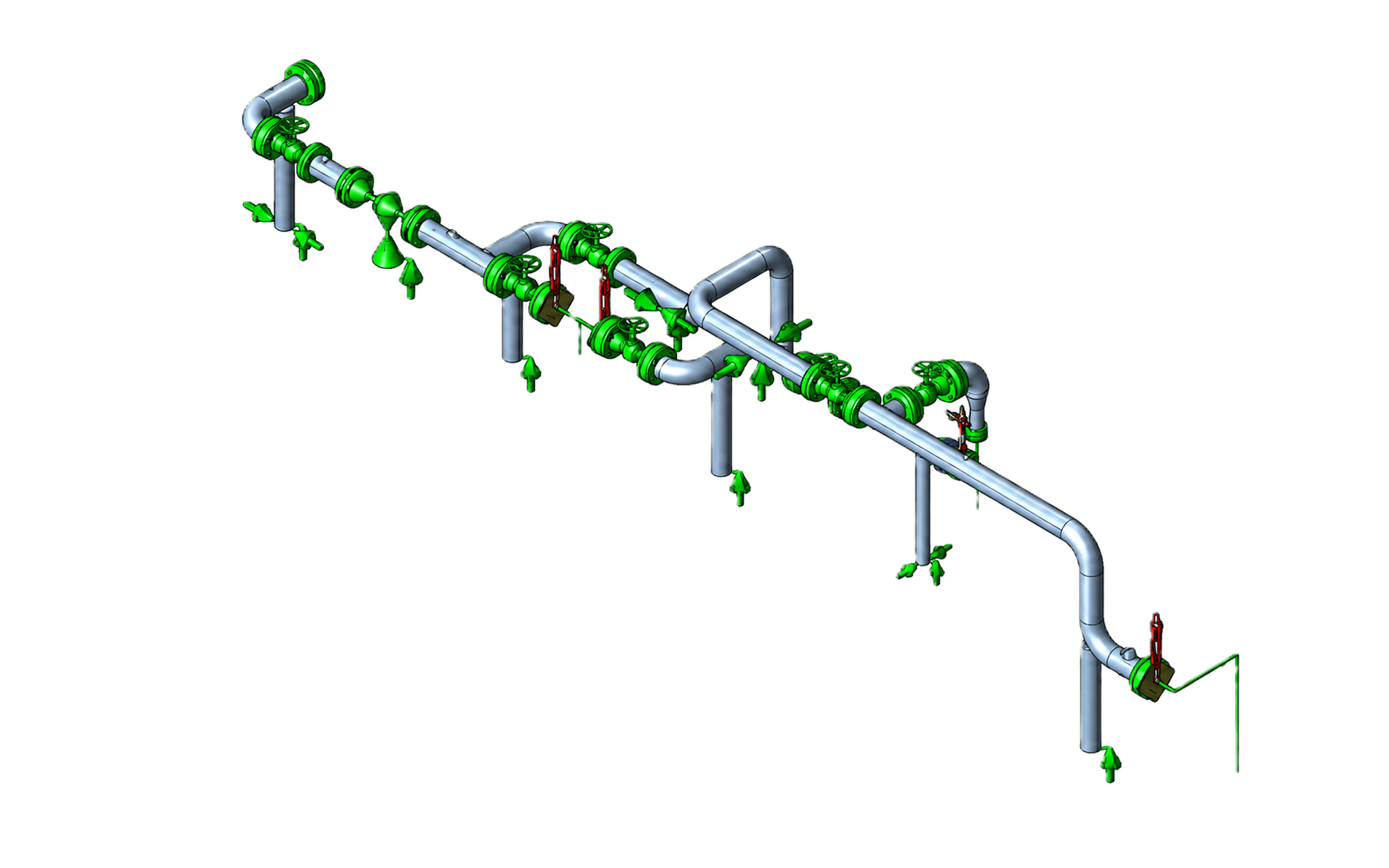

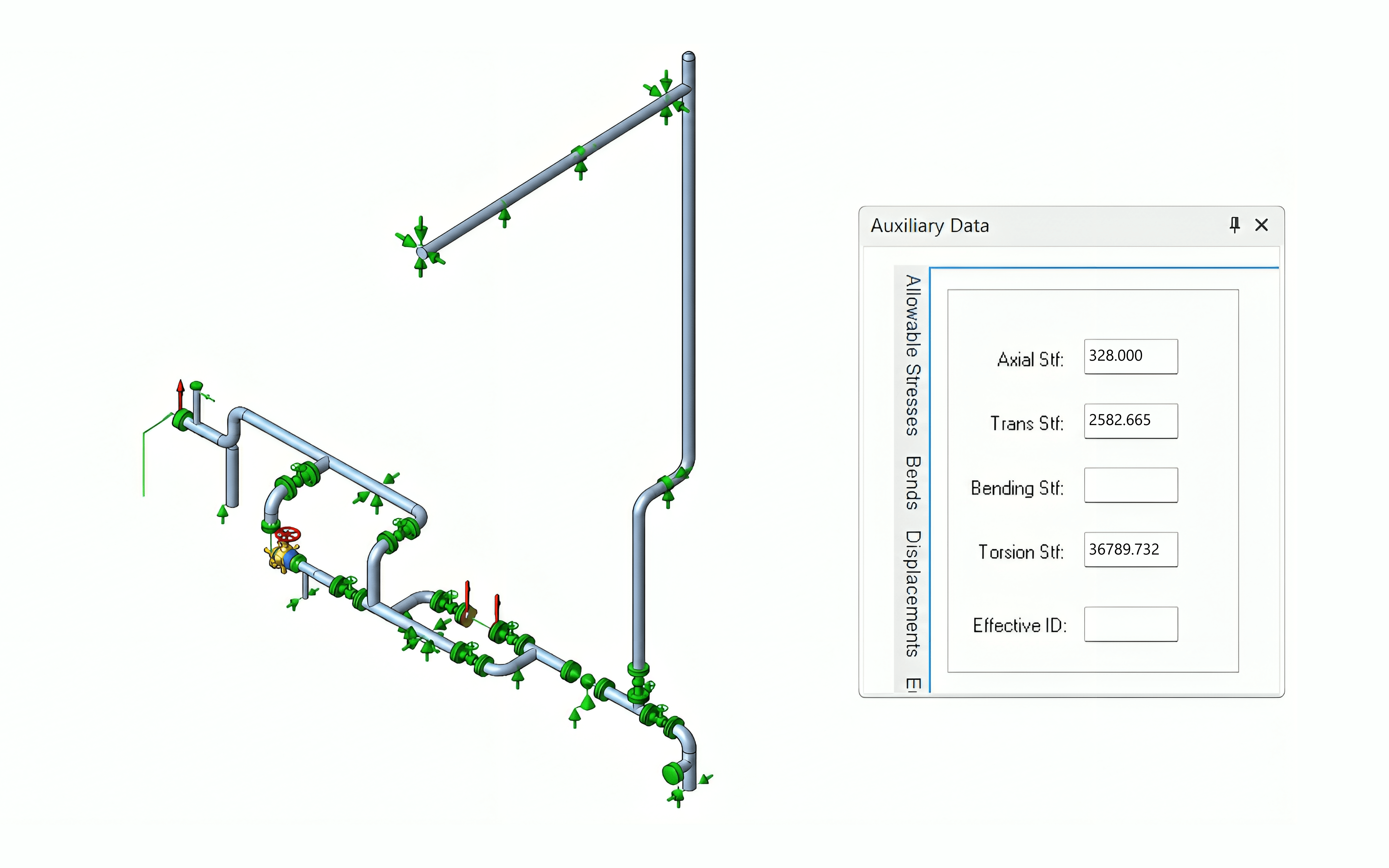

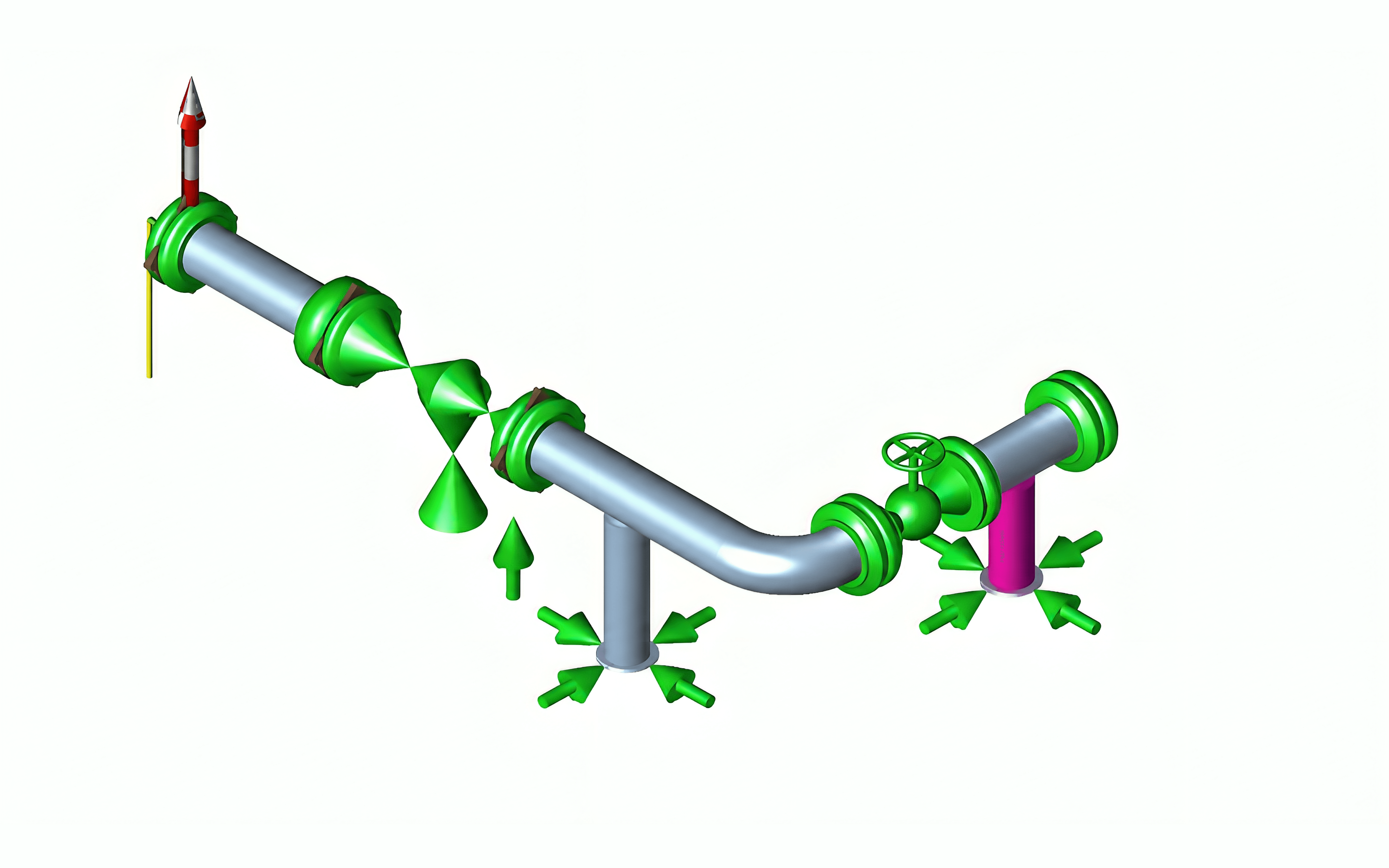

We produce stress isometrics, including annotations of support positions, pipe routing, and cold spring requirements, with a formal calculation report for client review. The 3D model of the piping is finalised once the input—anchor, guide positions—are locked.

Design gaps occur if steps aren’t taken to address system issues. This can cause serious systemic performance concerns.

We reduce these gaps through integrated stress analysis by understanding the conditions that affect piping systems.

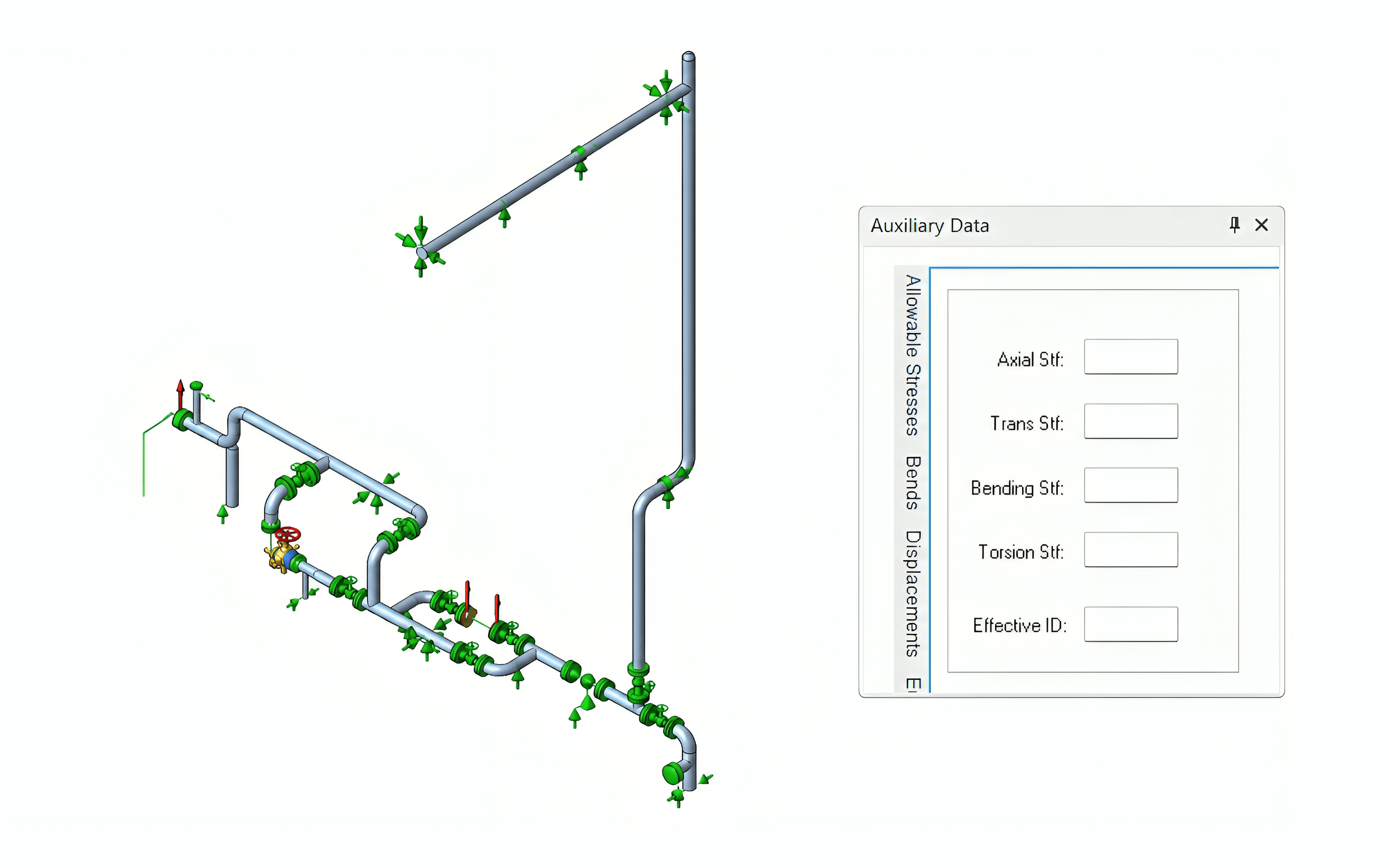

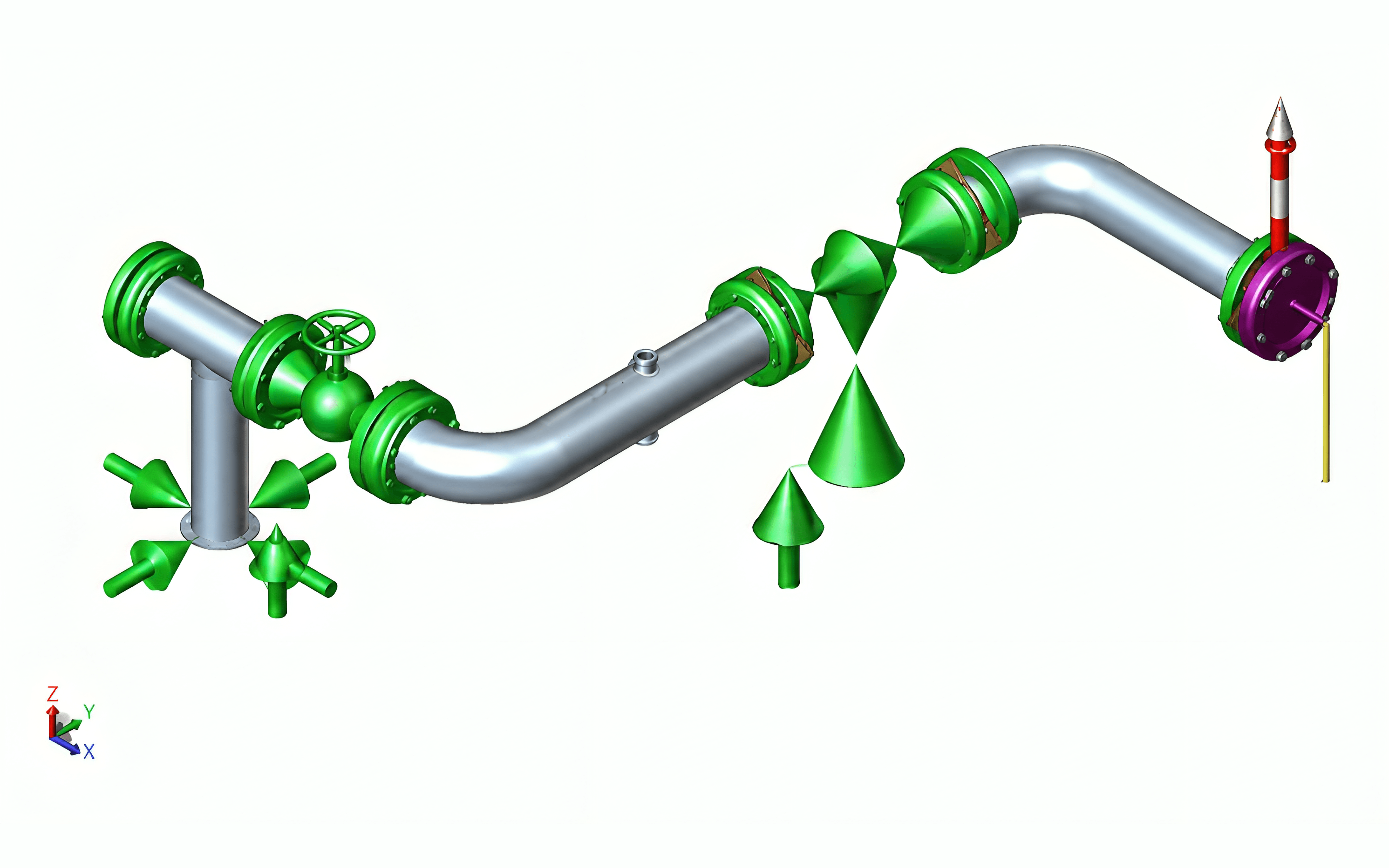

Some of the common problems causing pipe stress can be seen here:

Thermal expansion or contraction due to temperature changes
Undefined load cases—weight, wind, insulation, snow load etc.
Excessive bending causing flange leakages
Improper piping support leading to misalignment
Vibration levels exceeding acceptable limits

The pipe stress engineers handle these concerns by measuring them against allowable limits, applicable compliance codes, routing configurations, and vendor specifications.

Corrective action is taken, and the analysis results are incorporated into the 3D piping model, maintaining system integrity without needing re-checks.

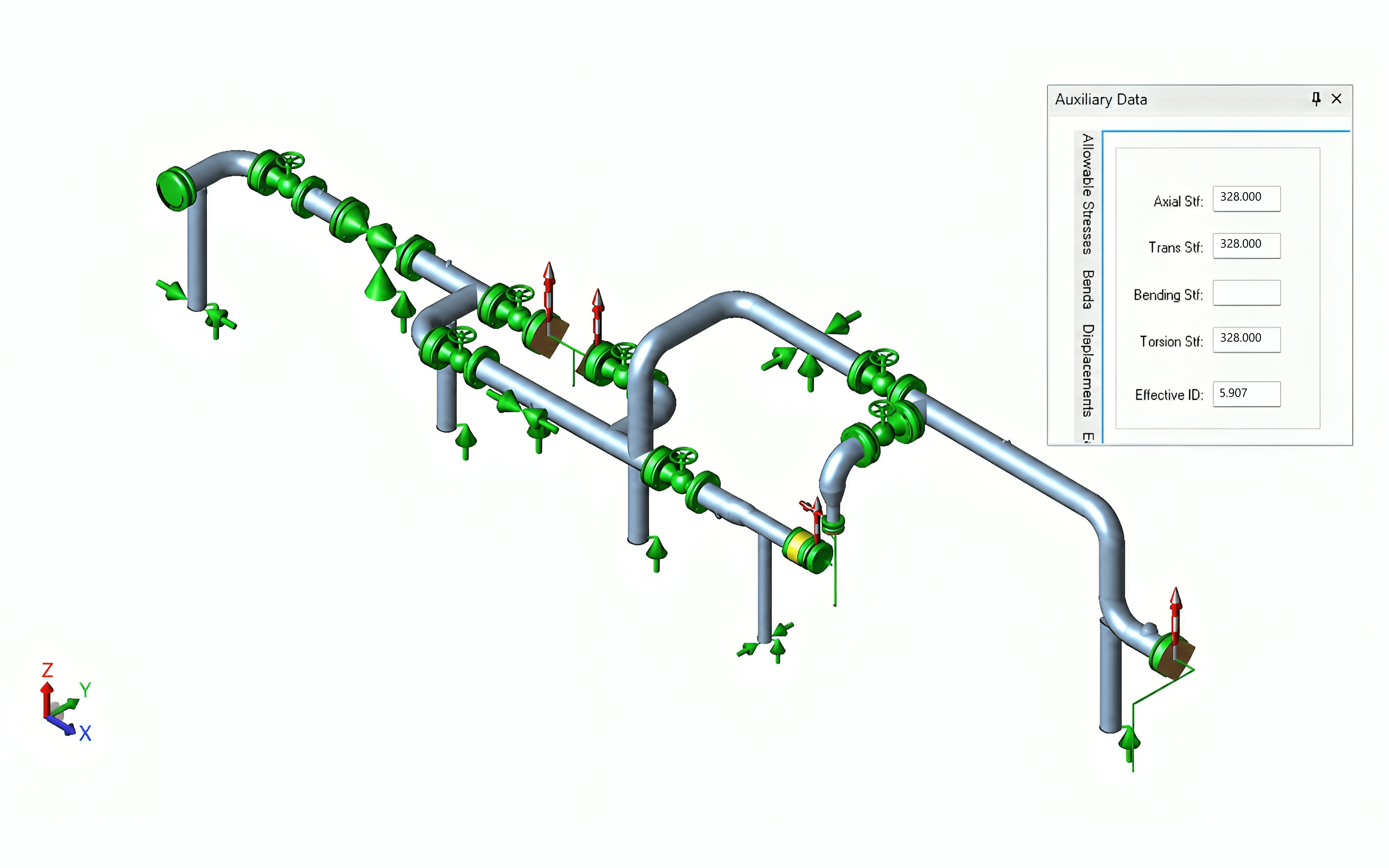

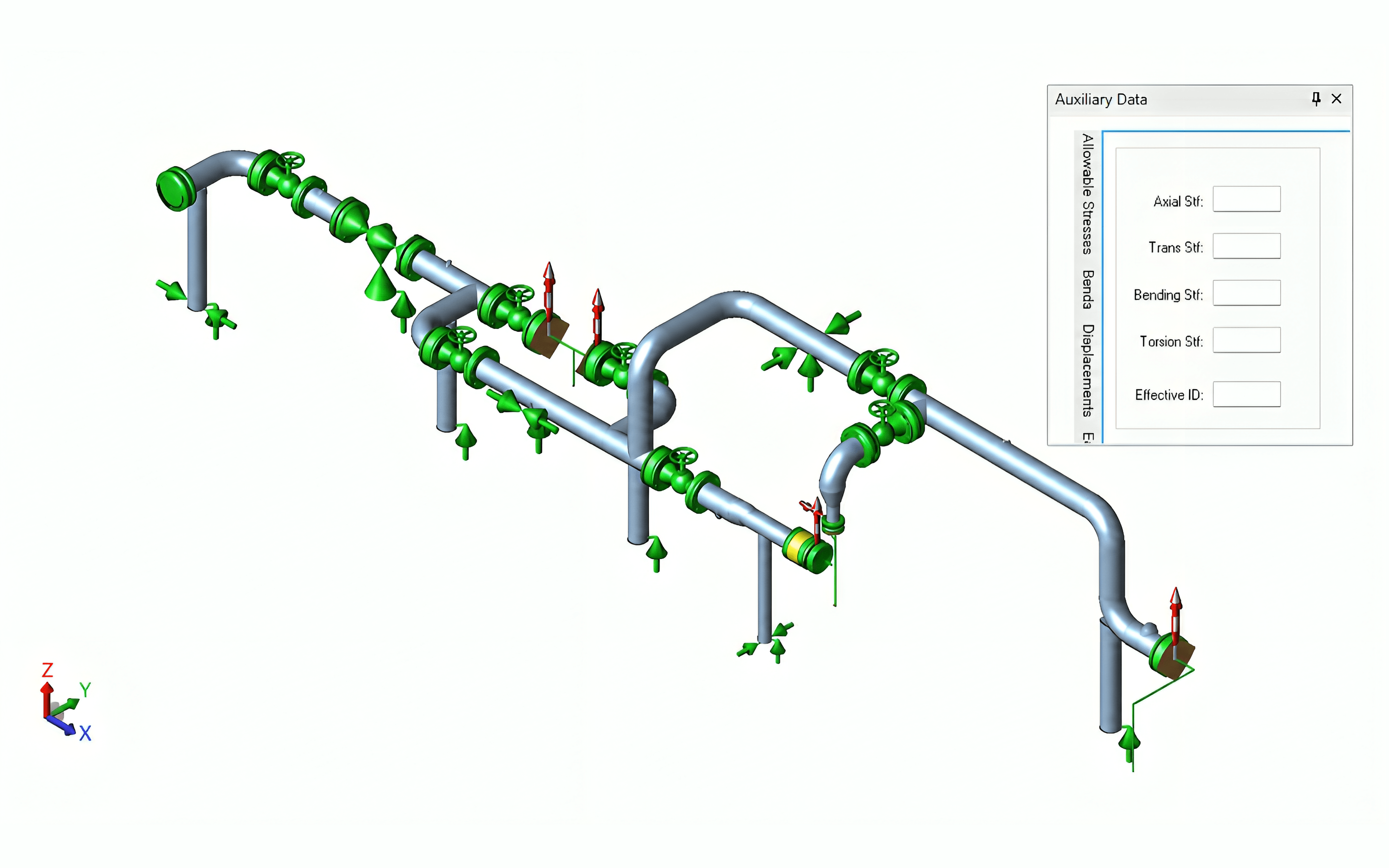

Long-term Piping System Integrity and Assurance

Piping stress analysis ensures safe and risk-free system performance in plants. Early analysis isn’t just a regulatory formality but an engineering discipline that protects equipment and increases the operating longevity of systems.

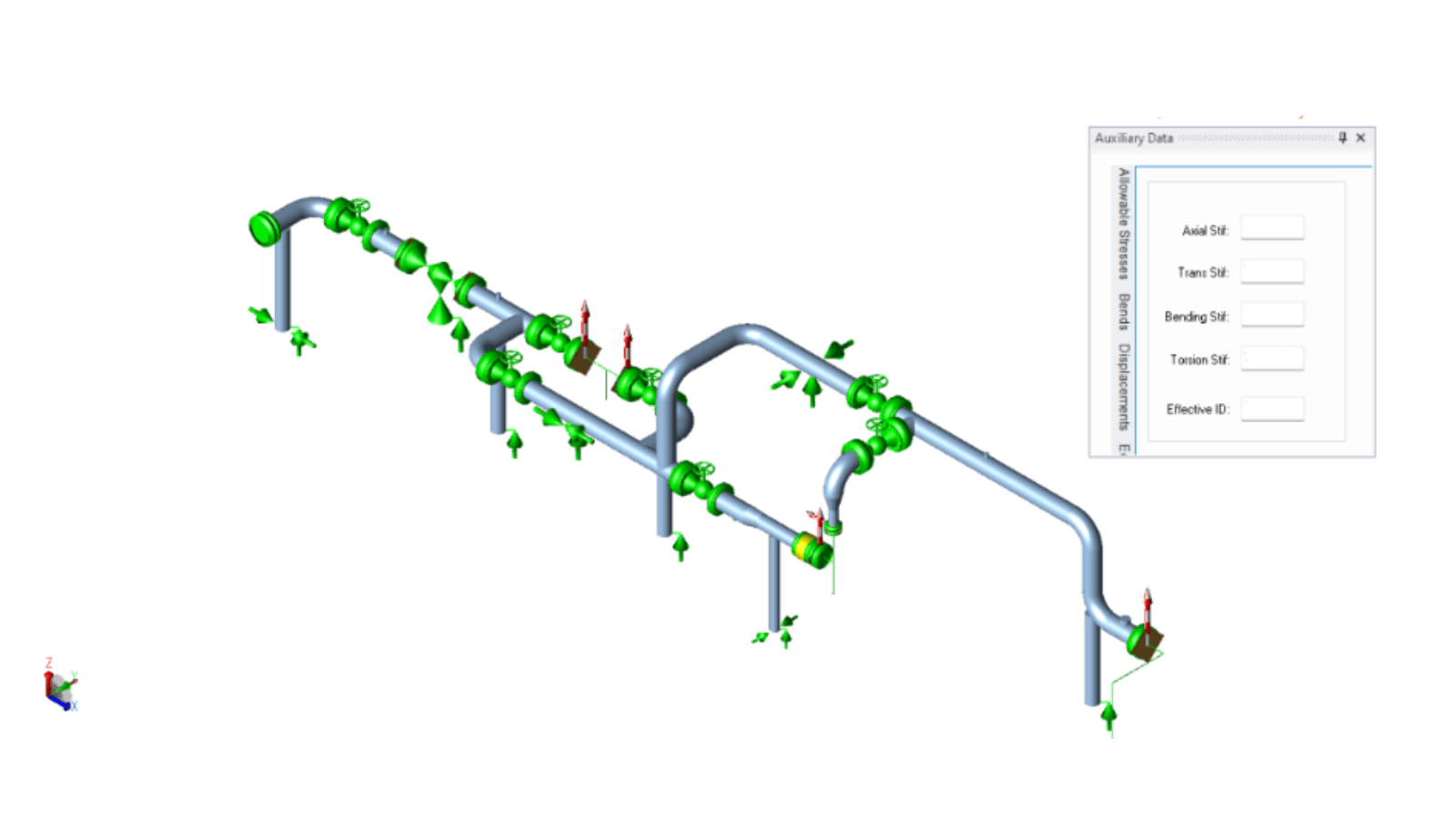

Potential issues are identified and validated in the piping model long before fabrication.

Condition-Based Optimisation

We focus on critical and high-priority pipelines and assess them for slug flow, water hammer, and vibration loading. Thereby minimising stress concentrations and enhancing operational stability.
